Installing and Running RVTools

Overview

Instructions to use data collected with RVTools to size a Nutanix platform.

What is RVTools

RVTools is a windows .NET application which uses the VI SDK to display information about your virtual machines and ESX hosts. RVTools is able to list information about VMs, CPU, Memory, Disks, Partitions, Network, Floppy Drives, CD drives, Snapshots, VMware tools, Resource pools, Clusters, ESX hosts, HBAs, Nics, Switches, Ports, Distributed Switches, Distributed Ports, Service consoles, VM Kernels, Datastores, Multipath info and health checks.

Download RVtools: http://www.robware.net/

Installing RVTools

To install RVTools follow these steps:

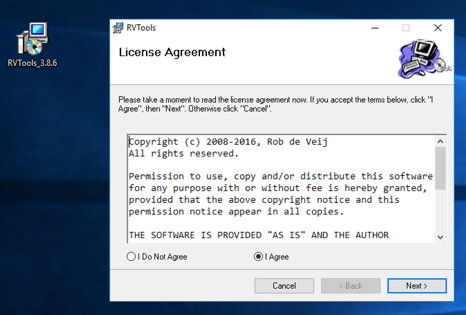

  • Run installer file (RVTools_3.8.6.msi) on a Windows system
../../_images/rvtools_01.png

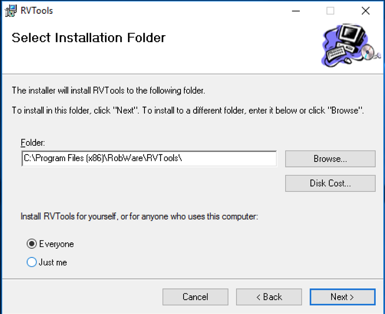

  • Choose an install folder
../../_images/rvtools_02.png

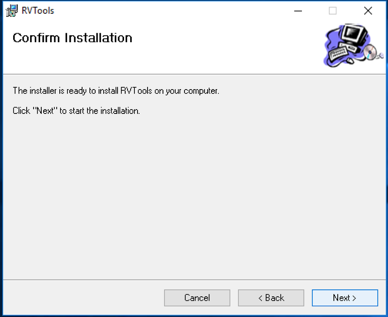

  • Finish installation process
../../_images/rvtools_03.png

Running RVTools and Exporting Results

Use the following steps to run RVTools, and export the results:

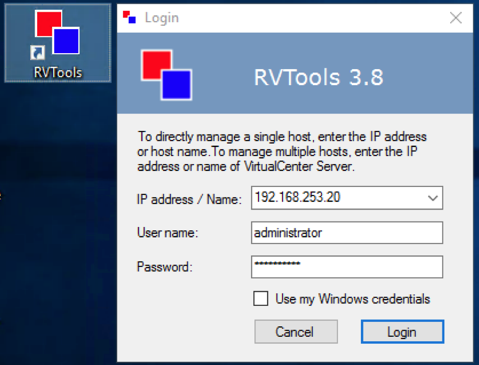

  • Run RVTools and provide vCenter (or each ESX host) credentials
../../_images/rvtools_04.png
  • RVTools will collect all of you virtual environment information and display it as a table
../../_images/rvtools_05.png

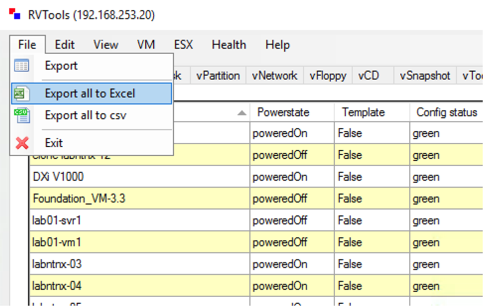

  • Export the result as Excel format: File > Export all to Excel
../../_images/rvtools_06.png

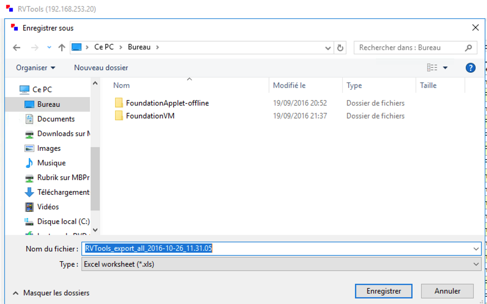

  • Provide a folder and a name for the file
../../_images/rvtools_07.png

Getting the Numbers for Sizer

Now lets get the VM information we need from RVTools, and see where that information goes in Sizer.

Getting the number of VMs

On tab tabvInfo in RVTools Excel extract, column A list the name of VMs. Select all the VMs and get the number as indicated in « Count » in the Excel footer:

../../_images/rvtools_08.png

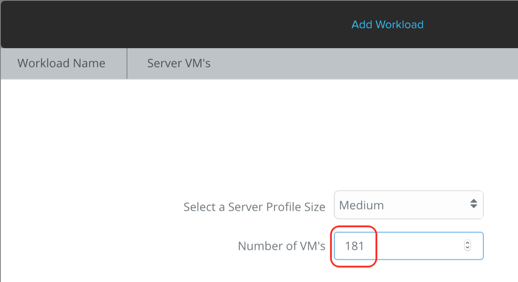

In the Sizer, provide the number of VMs:

../../_images/rvtools_09.png

Getting the VM’s average vCPU and Memory

We need to get the average vCPU and RAM per VM from the tabvInfo tab. Below you can see we sum up the vCPU of the VMs (M column) and divide it by the number of VMs. Same thing for the Memory (N column).

../../_images/rvtools_10.png

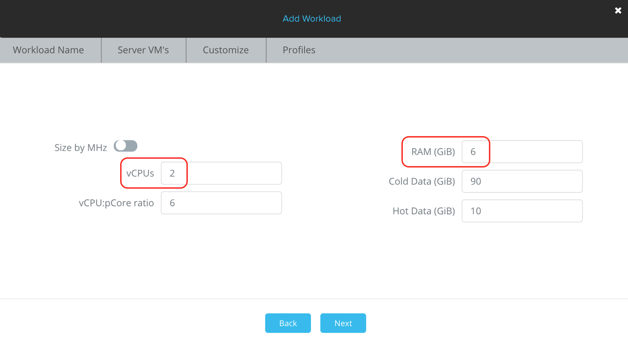

In the Sizer, provide the average vCPU and RAM values:

../../_images/rvtools_11.png

Get the storage used

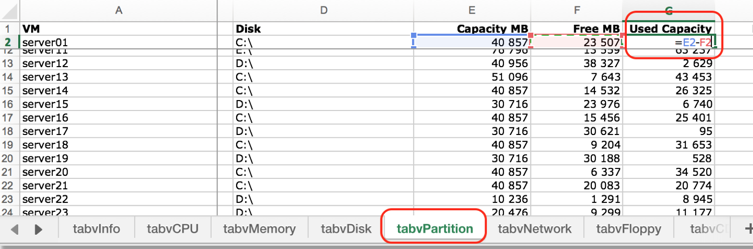

In tabvPartition tab, add a column named Used Capacity after Free MB (F column). Add a formula to subtract Free MB (F) to Capacity MB (E). In the example below: =E2-F2 (Repeat that formula until the last line).

../../_images/rvtools_12.png

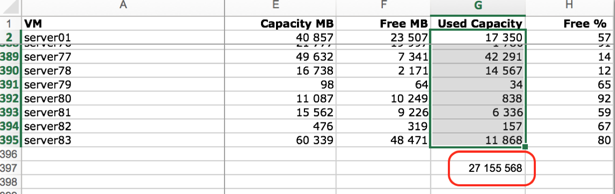

Sum up the new Used Capacity column:

../../_images/rvtools_13.png

Divide the sum Used Capacity (27 155 568 MB in this example) by the number of VMs (181 VMs here). The average storage per VM here is 150,03 GB.

In the Sizer, provide the quantity of storage in GiB* (140GiB).

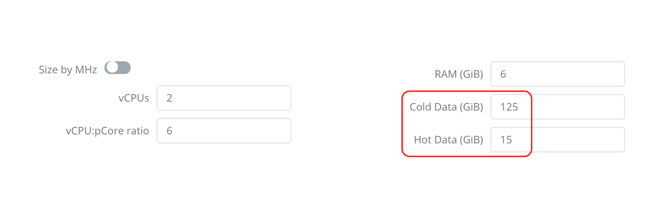

Split the storage amount between Cold Data and Hot Data (Based on DPACK results or a ratio, like 10% Hot/Cold)

../../_images/rvtools_14.png

Note

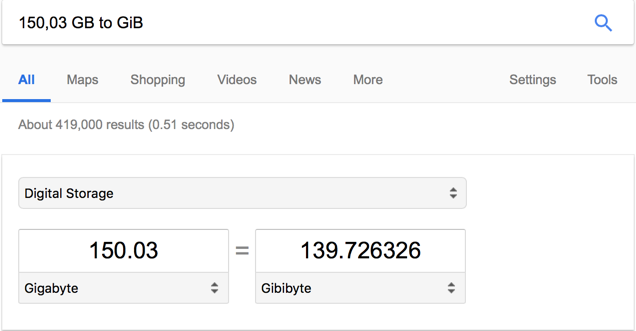

You can use Google to convert GigaByte to GibiByte

../../_images/rvtools_15.png

Takeaways

  • RVTools can be very useful to capture the information we need to size Nutanix workloads.
